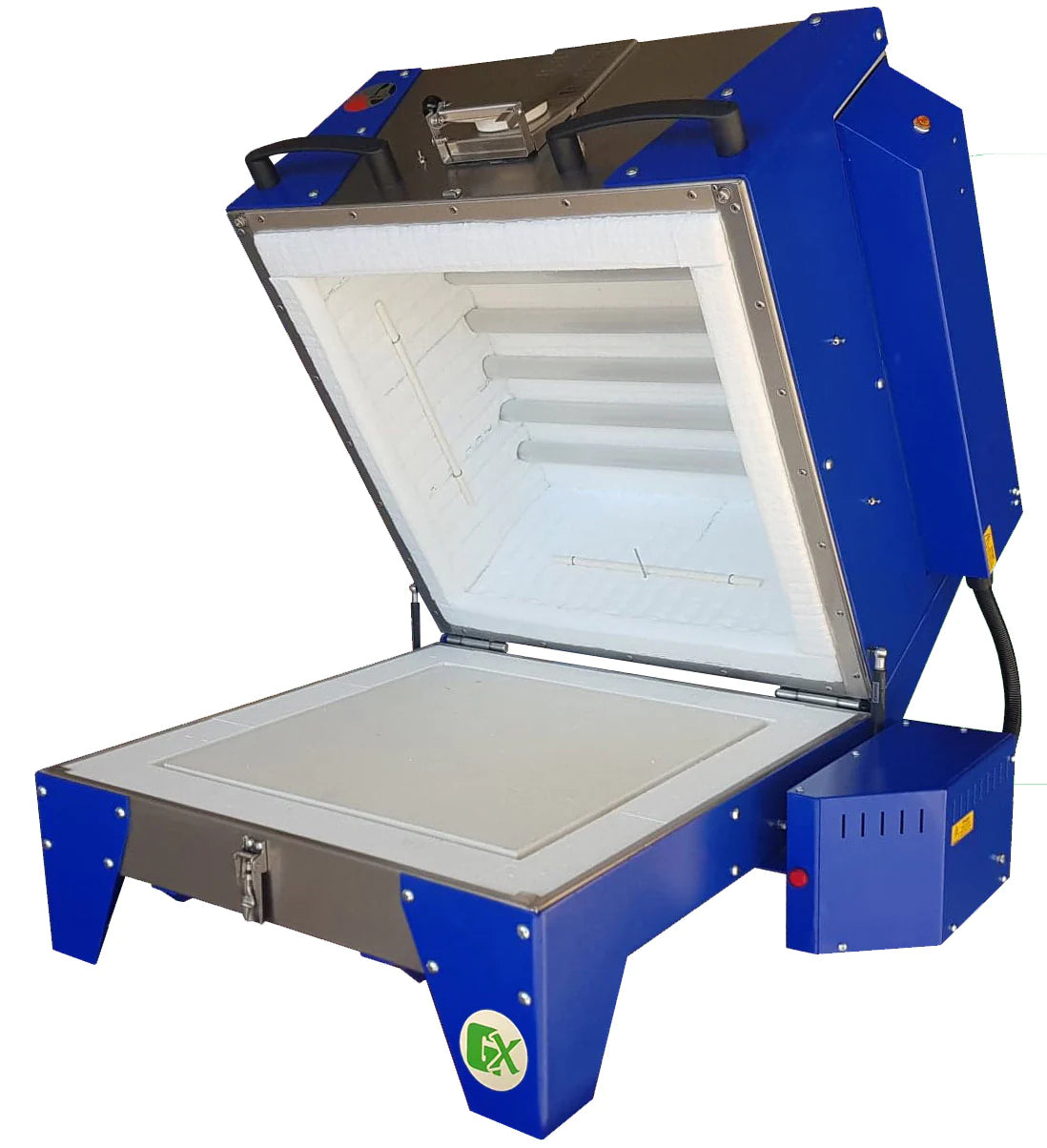

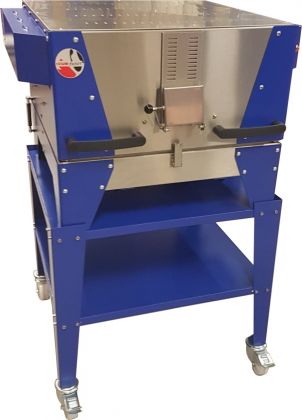

Kilncare Cub-Fuser Glass Kiln
Kilncare Cub-Fuser Glass Kiln
Couldn't load pickup availability
Pickup in Torquay, or request a quote for delivery by clicking on 'add to quote' and submitting your details. Please note controller is included. WIFI can be added for $347. Furniture set is NOt included but can be added from Kiln accessories
For more information on the Cub-Fuser and other Kilncare Glass Kilns, please click here.
Internal Size: (W) 510 mm (D) 510 mm (H) 225 mm
External Size: (W) 895 mm (D) 810 mm (H) 550 mm
Weight: 94 KG | Power: 3 KW | Phases: Single Phase | Amps: 12.6 A
Voltage: 230v | Maximum Temperature: 960 °C
Controller: included KCR32C (KCR32C WIFI optional)
Provided with 2m lead and requires an electrician to connect to single phase supply.
Instruction Manuals Available HERE
*** please note we stock all the Kilncare Glass Kilns so if there is one you would like that is not listed please send us an email***
GLASS KILNS
4 year warranty INCLUDING ALL elements
Comes with a 10 or 15 AMP power plug ready to plug in
| Glass Kiln | Phase / KW | AMPS / Volts | Internal Size (mm) | External Size (mm) | Max Temp | |
|---|---|---|---|---|---|---|
| Hobbyfuser Glass | Single / 2.3 KW | 10 AMP / 230V | 420(W) 420(D) 200(H) | 750(W) 740(D) 460(H) | 960 °C | Learn More |
| Eco Fuser | Single / 2.3 KW | 10 AMP / 230V | 420(W) 420(D) 225(H) | 800(W) 750(D) 550(H) | 960 °C | Learn More |
| Cub Fuser | Single / 3 KW | 12.6 AMP / 230V | 510(W) 510(D) 225(H) | 895(W) 810(D) 550(H) | 960 °C | Learn More |
| Cub Fuser Deep | 4.5 KW | 19 AMP / 230V | 510(W) 510(D) 330(H) | 895(W) 810(D) 635(H) | 960 °C | |
| Profuser | 6 KW | 25 AMP / 230V | 850(W) 510(D) 225(H) | 1250(W) 810(D) 540(H) | 960 °C | Learn More |
| Profuser Deep | 6 KW | 25 AMP / 230V | 580(W) 510(D) 330(H) | 1250(W) 810(D) 635(H) | 960 °C | Learn More |
| Deluxe Fuser | 7 KW + N | 30 AMP / 230V | 1020(W) 520(D) 320(H) | 1420(W) 890(D) 1300(H) | 960 °C | Enquire for more info |
| Elite Fuser | 10 KW + N | 42 AMP / 230V or 400v+N | 1020(W) 800(D) 320(H) | 1420(W) 1170(D) 1300(H) | 960 °C | Enquire for more info |
| Grand Fuser | 12 KW | 50 AMP | 1300(W) 800(D) 320(H) | 1700(W) 1170(D) | 960 °C | Enquire for more info |
| Euro Fuser | 10 KW + N | 42 AMP / 230v or 400v+N | 1000(W) 800(D) 300(H) | 1380(W) 1300(D) 1240(H) | 960 °C | Enquire for more info |
| FK R8 | 3 Phase + N 16 KW | 67.2 / 400V | 1550(W) 1050(D) 265(H) | 1910(W) 1600(D) 1240(H) | 960 °C | Enquire for more info |
| FK8 | 3 Phase + N 16 KW | 67.2 / 400V | 1550(W) 1050(D) 265(H) | 1910 (W) 1600 (D) 1240 (H) | 960 °C | Enquire for more info |
"It's brilliant! The firing ramp is very accurate, and the insulation is mind-blowing. I love it when you meet people with a passion".
Keith Brymer Jones
Master potter and head judge of "the Great Pottery Throw Down" based in UK.
