Venco 100 mm De- Airing Pug Mill

Available for pre order!

Available Sizes

• 100mm (4 inch)  nozzle 200mm barrel, with a 0.38kW (1/2 HP) vacuum pump

Features

• Robust construction, suitable for blending, mixing and re-working clay.

• Stainless Steel auger shaft and blades.

• Stainless steel MESH shredder screen. NOT cheap perforated plates. This allows Venco pugmills to use lower capacity motors minimising operating costs.

• Zinc plated and powder coated base.

• Sealed for life ball bearings protected by “O” ring seals.

• Cast marine grade aluminum barrel – Split longitudinally for easy cleaning.

• High capacity sliding vane vacuum pumps with single phase motors – with incorporated air / water filter.

• The 100mm (4″) has access slots on the sides of the barrel for removing the shredding screens without the need to split the barrel.

Specifications - 100mm

• Model: 100mm (4 inch) nozzle, 200mm barrel De-air Pug Mill



• Motor: Single phase 1.5 kW 240v with integral thermal overload protection

• Drive System: Industrial Gearbox

• Weight: 150KG

• Dimensions: 150 x 60 x 70



• Warranty period: 36 months on machine

• Warranty period: 12 months on vacuum pump



Optional Extras

• Coarse shredder screens (no additional cost)

Warranty

• Warranty period: 36 months on machine

• Warranty period: 12 months on vacuum pump

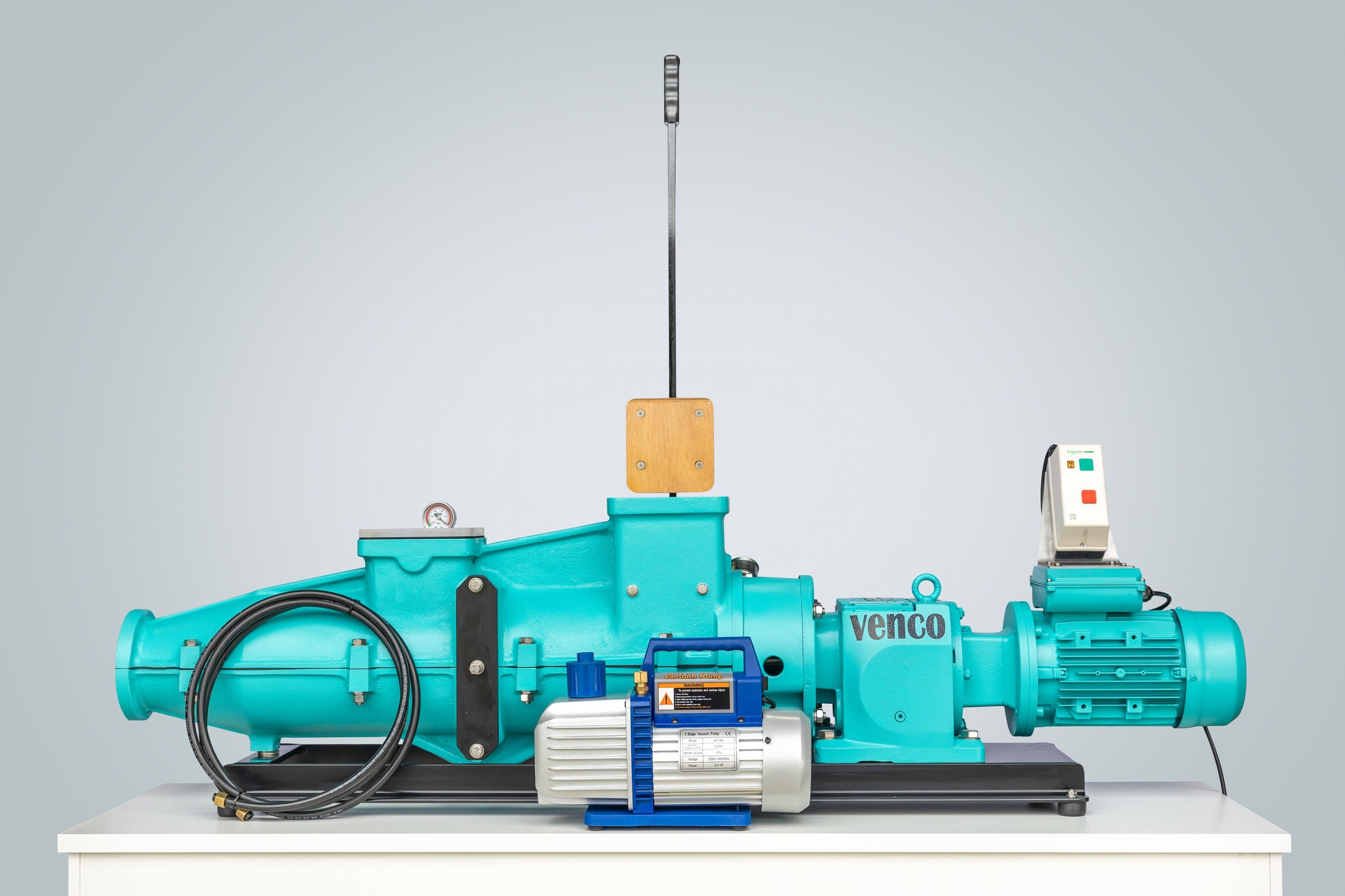

The de-airing models incorporate a vacuum pump which removes air trapped within the clay while pugging is performed. This produces the highest quality clay for immediate use on a potters wheel.

Delivery Options:

Please contact us for Delivery options and costs. They can be picked up from Torquay or Spotswood in Melbourne or shipped around Australia.
