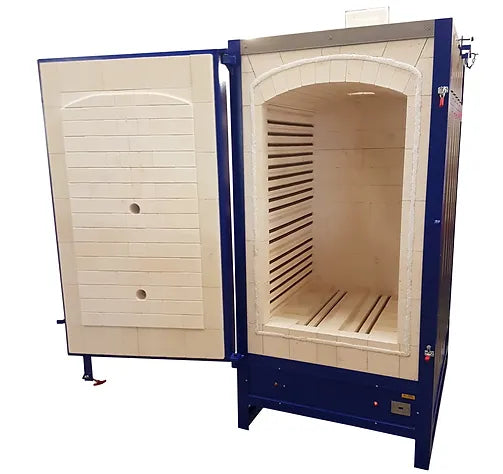

Kilncare EPIK 510 Litre Front Loading Ceramic Kiln

Pickup in Torquay, or request a quote for delivery by clicking on 'add to quote' and submitting your details.

For more information on the Kilncare EPIK Front Loading Ceramic Kiln range and other Kilncare Ceramic Kilns please click HERE

Internal Size: (W) 610 mm x (D) 910 mm x (H) 910 mm
External Size: (W) 940 mm x (D) 1490 mm x (H) 1780 mm
Weight: 740 KG | Capacity: 510 Litres | Power: 25.5KW
Phases: 3 Phase + Neutral | Amps: 107 A | Voltage: 400v + Neutral
Maximum Temperature: 1315 °C
Controller: included KCR32C (KCR32C WIFI optional)

Highlights of the Kilncare EPIK 510 litre Front Loading Ceramic Kilns

• 2 year warranty
• Perfect for the professional pottery studio, school/ TAFE/ University/ Art space who fire larger work or needing to fire more work at a time
• Accurate firing temperature
• 3 phase
• Floor Elements as well as side

• Extremely efficient
• R type Thermocouple
• Safety Lock on door seal that needs to engage before firing commences
• 60 mm WDF Micropore which is nearly double the insulation properties of other commonly used micropore.
• K23 high quality 150 mm bricks plus 76 mm calcium silocate
• Pull out trolley floor available
• A1 Kanthal elements (we only use rated below 12 watts per square inch). The lower rating the better for durability and longevity. Other brands use 15 or 16 watts / square inch which means they will not last as long.
• Uniquely recessed door for less gas escape, increased economy, and more even heat dispersion throughout the kiln. It also reduces the corrosion on and near the door of the ceramic kiln.

• Muli - zoned High quality easy to use Stafford (KCR32Z) Controller Standard in all EPIK kilns that comes pre programed as well as room to add your own programs in.
• OPTIONAL WIFI available which allows for remote viewing via the gateway ap, monitor power usage, logs all firings and the ability to live monitor the firing times and temperature of your kiln to predict firing ramp rate and cool down times.
• Metal casing made from 304 brushed stainless steel, and added to any areas of high exposure to reduce degradation. The element power is kept in a separate panel from the main electrical components to ensure that the components are kept as cool as possible during the fire process
• OPTIONAL extra micropore to increase efficiency by 10% to further reduce firing costs
• OPTIONAL pull out trolley floor
• Truly unmatched in terms of performance, reliability, longevity and structure.

Kilncare Ceramic Kilns:

• Made in the UK for over 40 years at Stoke on Trent
• 3rd generation Family run business
• Backed by Keith Brymer-Jones (head judge of The Great Pottery Throw Down)
• Exceptional design and after sales support backed by Australian Pottery Supplies in Australia
• All kilns utilize UK's most traditional and time tested methods and techniques to provide accurate firing ceramic kilns built to withstand firing after firing.

Instruction Manuals Available Here
