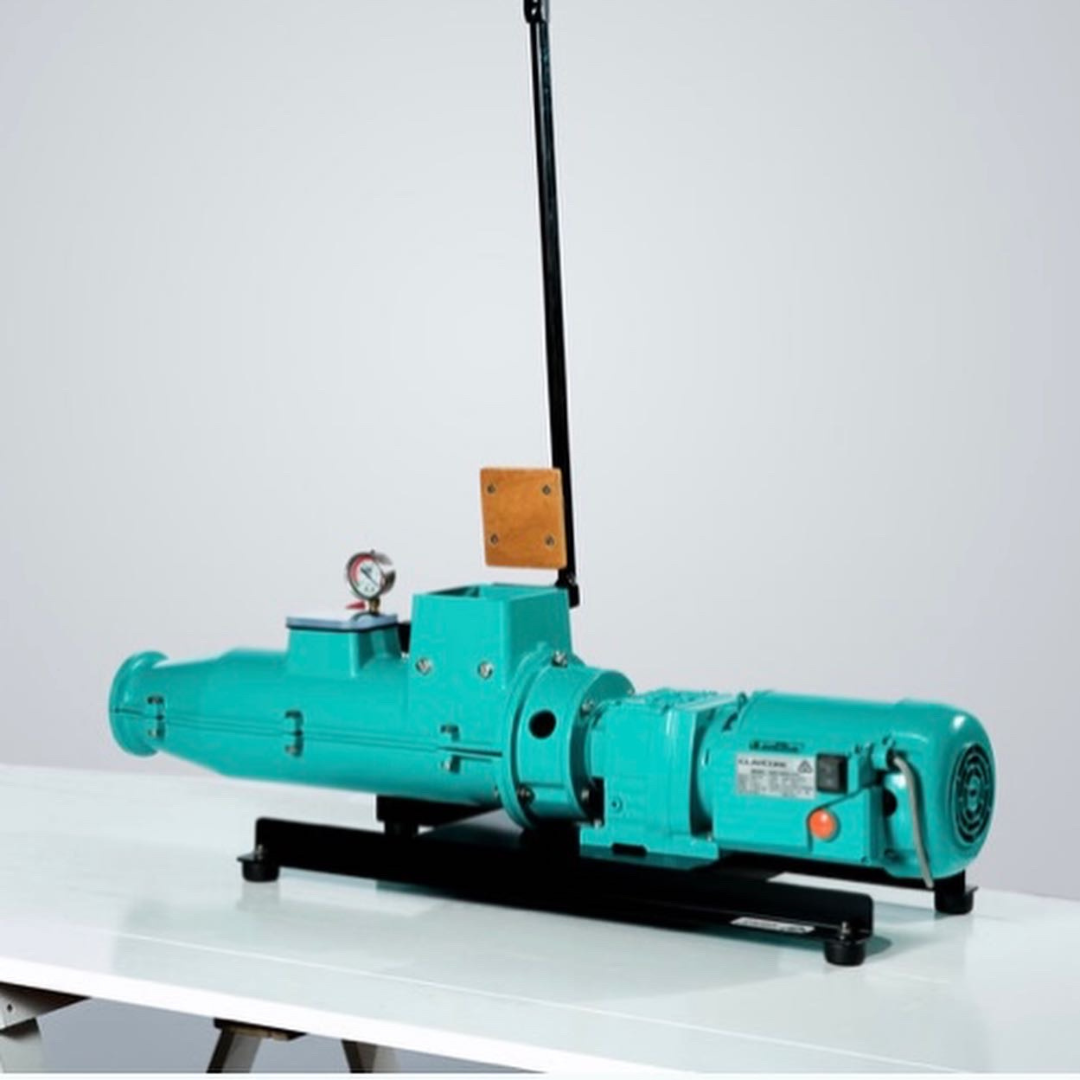

Venco 75 mm De- Airing Pug Mill

We now have stock of these to purchase today. This includes the pump

Pick up available Spotswood and Torquay by arrangement. Or if you would like a quote inclusive of freight, please submit a 'quote request'.

Available Sizes

• 75mm (3″) nozzle, 136mm barrel, with a 0.18kw (1/4hp) vacuum pump

Features

• Robust construction, suitable for blending, mixing and re-working clay.

• Stainless Steel auger shaft and blades.

• Stainless steel MESH shredder screen. NOT cheap perforated plates. This allows Venco pugmills to use lower capacity motors minimising operating costs.

• Zinc plated and powder coated base.

• Sealed for life ball bearings protected by “O” ring seals.

• Cast marine grade aluminum barrel – Split longitudinally for easy cleaning.

• High capacity sliding vane vacuum pumps with single phase motors – with incorporated air / water filter.

• The 100mm (4″) has access slots on the sides of the barrel for removing the shredding screens without the need to split the barrel.

Specifications - 75mm

• Model: 75mm (3 inch) nozzle , 136mm barrel de-air pug mill

• Motor: Single phase 0.37kW 240v with integral thermal overload protection

• Drive System: Industrial Gearbox

• Weight: 45kg (52 including the Pump)


• Dimensions: in box 106 cm x 36 cm x 44 cm

Optional Extras

• Coarse shredder screens

• De-airing kit

Warranty

• Warranty period: 36 months on machine

• Warranty period: 12 months on vacuum pump

The de-airing models incorporate a vacuum pump which removes air trapped within the clay while pugging is performed. This produces the highest quality clay for immediate use on a potters wheel.

Delivery Options:

Please contact us for Delivery options and costs. They can be picked up from Torquay or Spotswood in Melbourne or shipped around Australia.
